Overview
More than 30 years ago, Shivvers revolutionized the industry with burners so efficiently designed for combustion that the flames produced were almost entirely blue. This technology has been perfected over decades, and now the Shivvers line of fans and heaters delivers millions of BTUs of heat every hour with velocities upward of 40,376 cubic feet per minute.
But what does this mean for you? That degree of heat and airflow means:
- Unrivaled fuel efficiency
- Optimum heating capabilities
- Maximum drying capacities
Each combination utilizes a downstream burner with Shivvers Blue Flame technology to ensure no fuel is wasted. These fans and heaters are controlled by your Shivvers Command Center during operation, automatically delivering peak performance and perfectly dried grain.
Blue Flame™ Fan and Heater Combinations
| Blue Flame™ – Axial Fan & Heater Combination | Blue Flame II™ – Centrifugal Fan & Heater Combination | Blue Flame II Maxx™ – DWDI Centrifugal Fan & Heater Combination | |
|---|---|---|---|
| Use | Mid capacity (up to 855 bph) | Mid capacity (up to 1,130 bph) | High capacity (up to 2,200 bph) |
| Fan | 28″ axial | 27″ or 30″ single inlet centrifugal | 30″ or 33″ double inlet centrifugal |
| Burner | Blue Flame | Blue Flame II | Blue Flame maxx II |
| Fuel | Natural Gas or LP | Natural Gas or LP | Natural Gas or LP |
| Electrical | 13hp single phase or 3-phase | 15hp single phase or 3-phase or 20hp 3-phase | 30, 40, or 50 hp 3-phase |

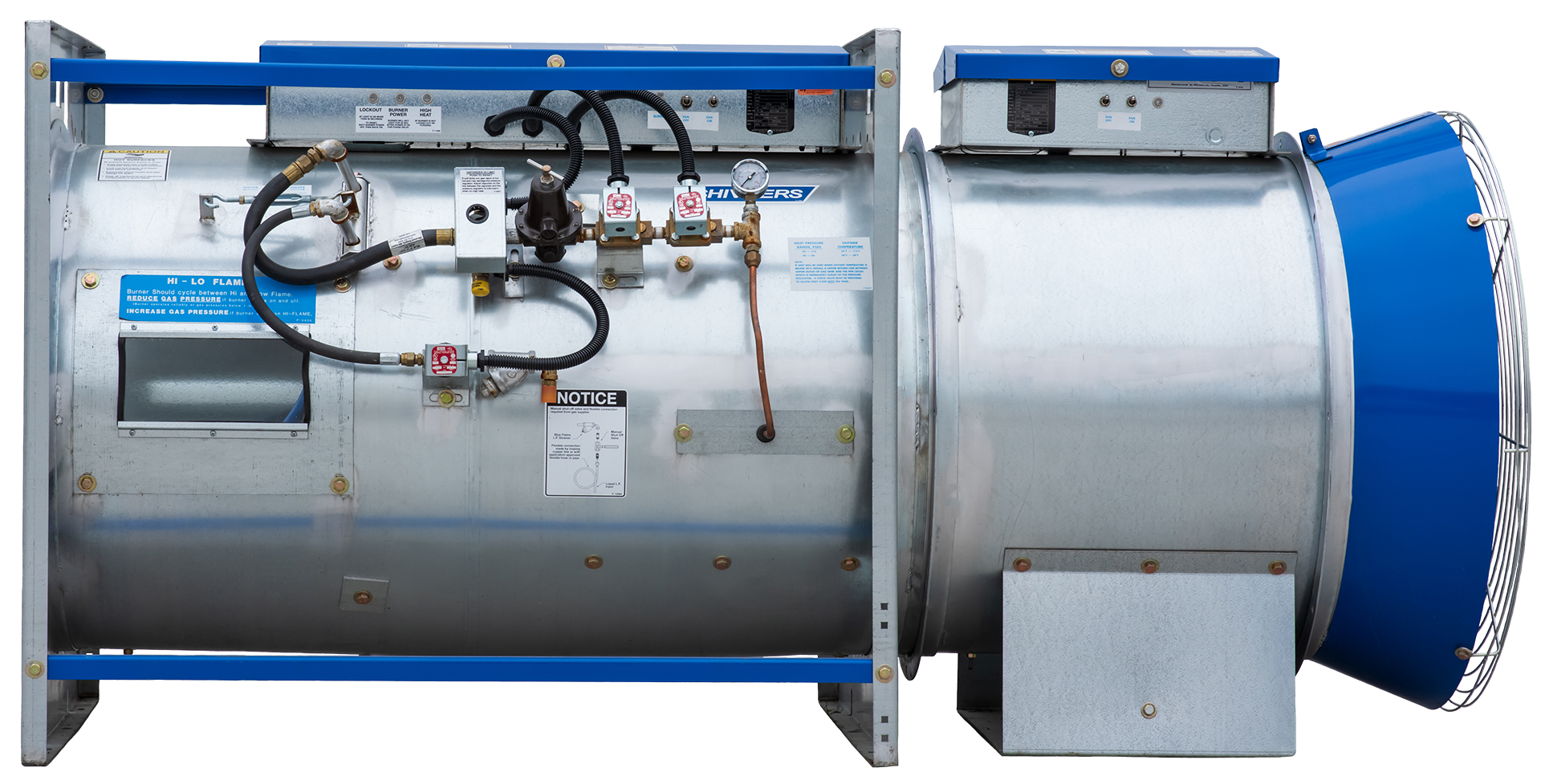

Turbo-Booster
Adding a Turbo-Booster to your Blue Flame™ Dryer can further increase drying capacity for our already-innovative, counter-flow performance system. Working together, they deliver airflow at up to 14” of static pressure—higher than any lower-speed centrifugal fan on the market today.
A 13 hp Turbo-Booster fan easily bolts to the Blue Flame™ Dryer for interconnection with its safety controls, while both a separate start-stop switch and magnetic starter are included. Note that the Turbo-Booster fan is not required for a Shivvers Complete Performance System, but installing one is an easy way to increase capacity.
